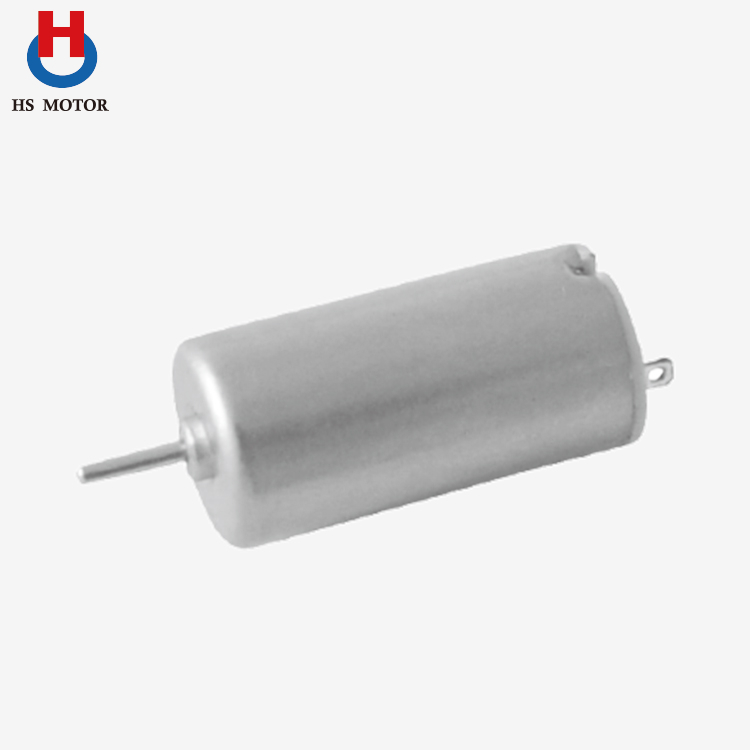

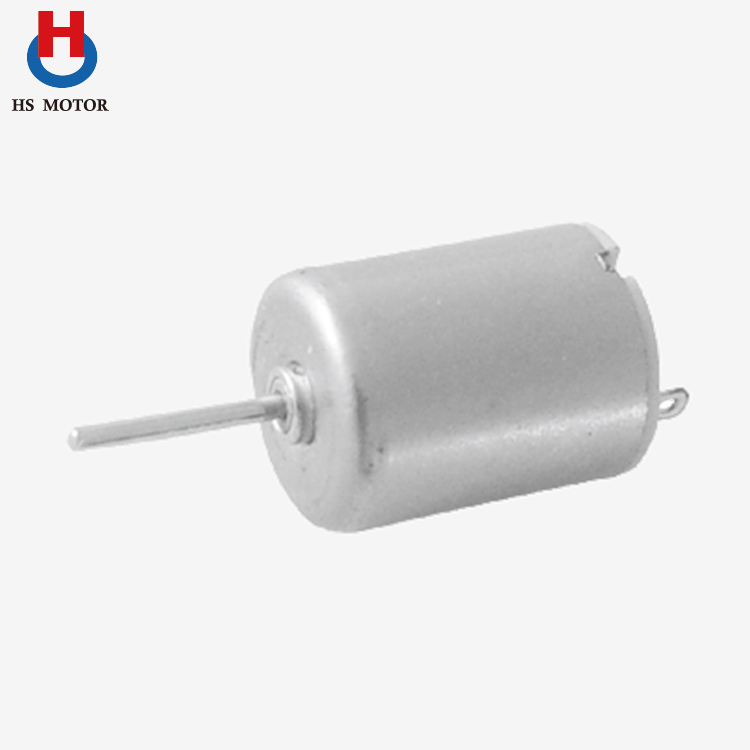

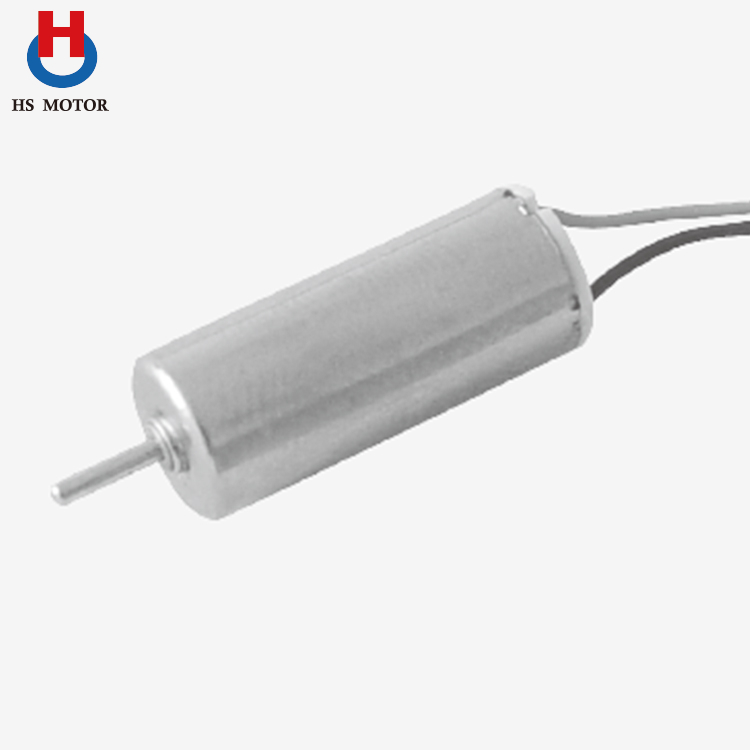

Coreless DC Motor HS-1012-1015-1020-Q

Coreless DC Motor

Typical Applications:

precision instruments

intelligent household appliouce

Mini electronic products

RC toys

Aircrafts
Availability:

  • Coreless DC Motor

OUTLINE DRAWING

Coreless-DC-Motor_HS-1012-Q-1Coreless-DC-Motor_HS-1012-Q

Coreless-DC-Motor_HS-1015-Q

Coreless-DC-Motor_HS-1015-Q-2

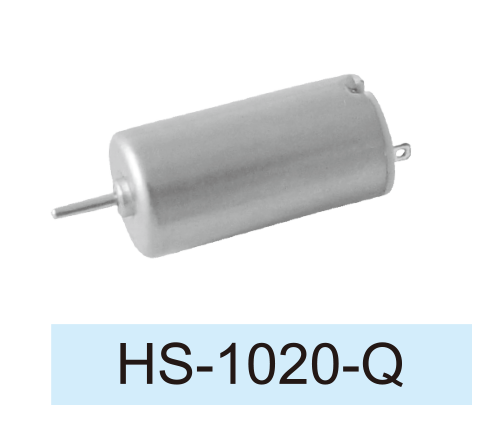

Coreless-DC-Motor_HS-1020-QCoreless-DC-Motor_HS-408-Z300-65130

SPECIFICATION


MODEL Voltage No load At maximum efficiency Stall
Operating range Nominal Speed Current Speed Current Torque Torque Current
V r/min A r/min A mN.m g.cm mN.m g.cm A
HS-1012-Q15030100 5.0-7.0 6 17000 0.025 11000 0.06 0.19 2 0.57 5.9 0.15
HS-1015-Q12040080 1.0-1.5 1.2 12000 0.07 10000 0.2 0.122 1.25 0.73 7.5 1.5
HA-1015-Q30090290 2.5-3.5 3 29000 0.09 22000 0.43 0.29 3 1.22 12.4 3
HS-1020-Q12040080 1.0-1.5 1.2 8000 0.04 6000 0.18 0.24 2.5 0.98 10 1.1

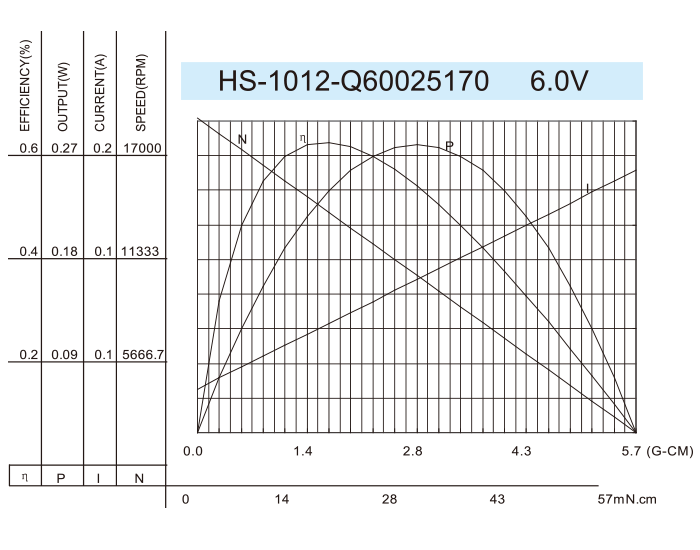

EFFICIENCY CURVE

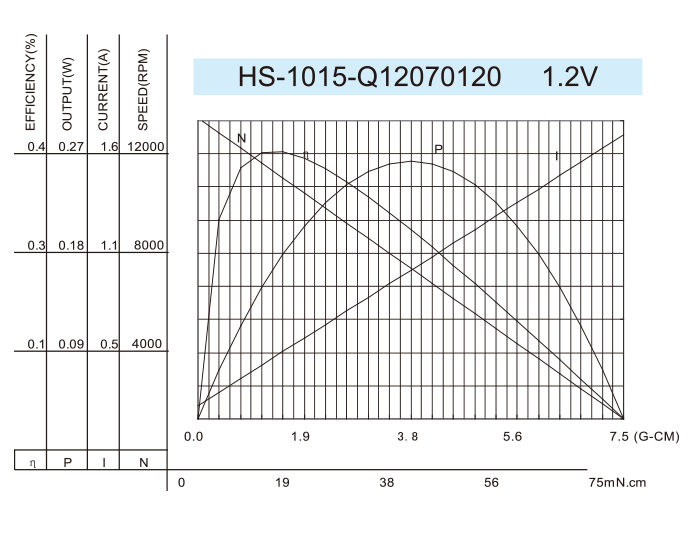

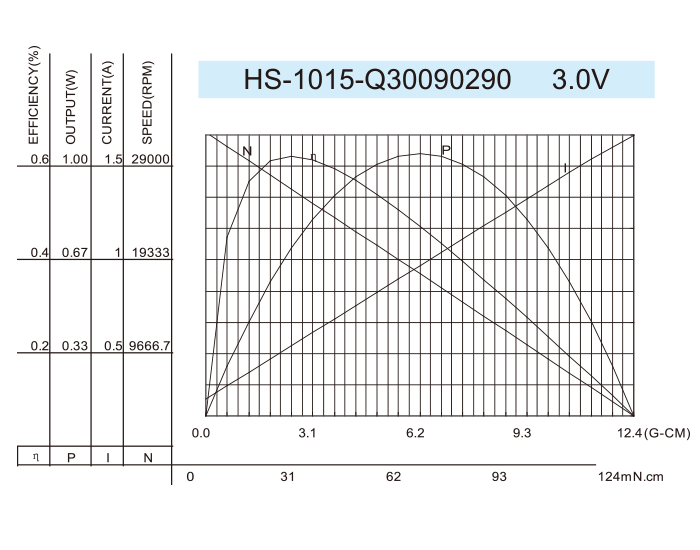

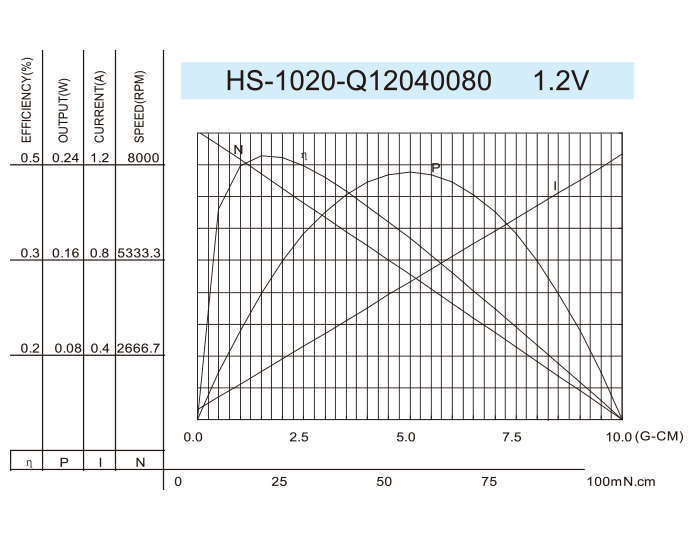

Coreless-DC-Motor_HS-1015-Q12070120-1.2VCoreless-DC-Motor_HS-1012-Q60025170-6.0VCoreless-DC-Motor_HS-1020-Q12040080-1.2VCoreless-DC-Motor_HS-1015-Q30090290-3.0V
