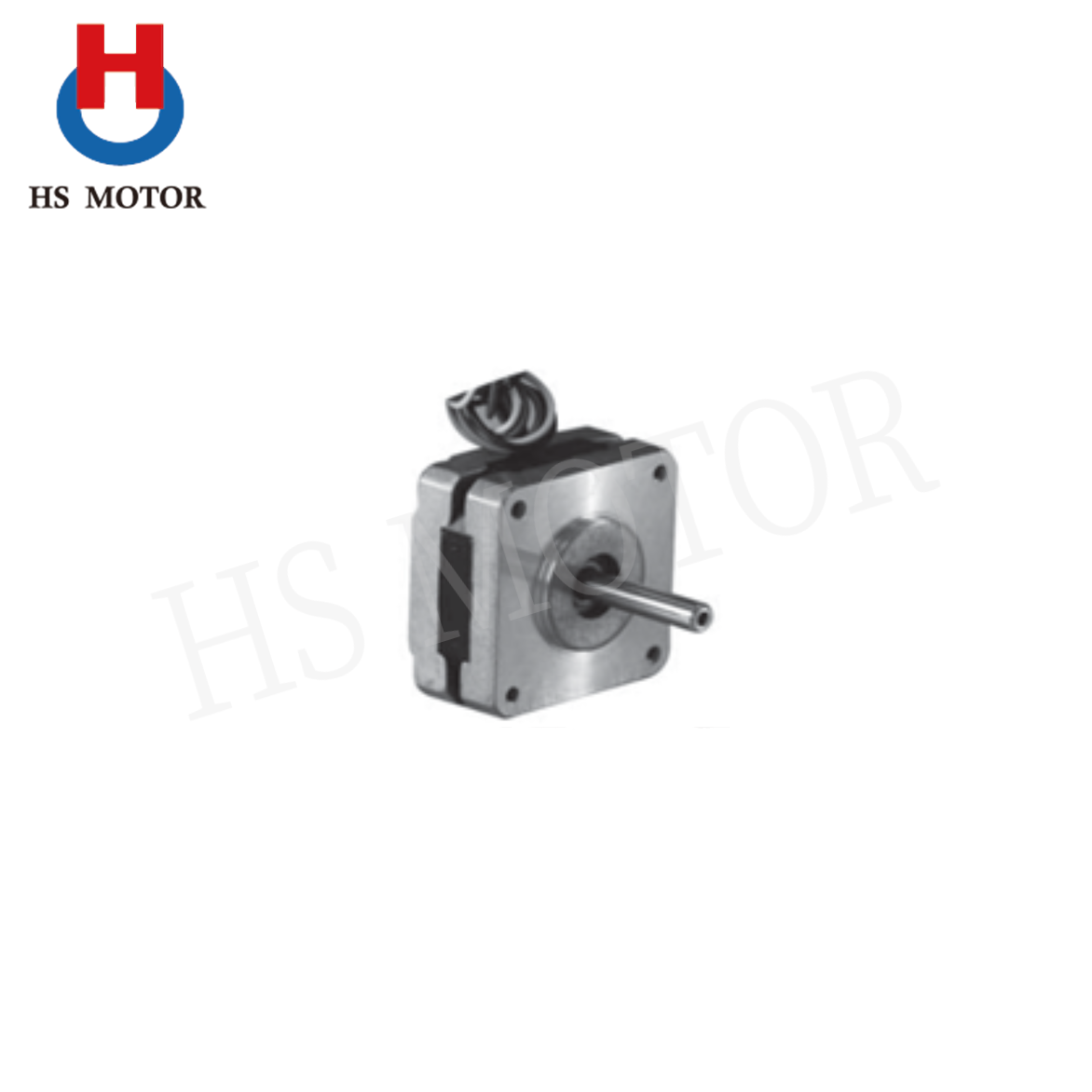

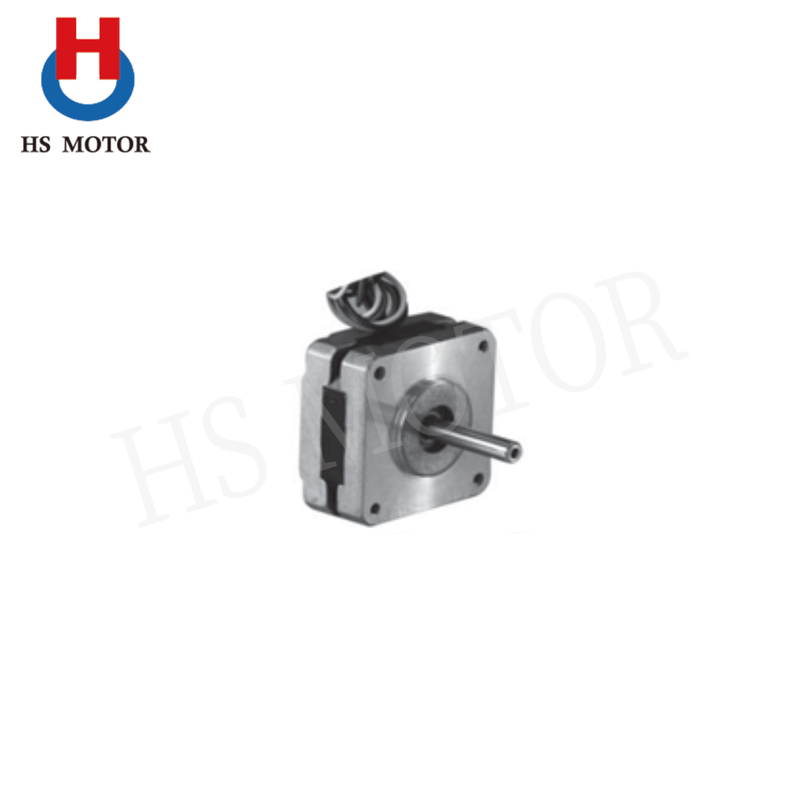

Hybrid Step Motor HS 39STH

Step Angle：1.8°
Weight：0.12g ~0.18kg (APPROX)
Typical Applications：Automation Robot ,Printing Equipment, Textile Machines, Medical ,Home Appliance, Automotive
Characteristic：High Precision, High Efficiency, Reliable, Dual Shaft, Small Size, Big Torque, Customization
Availability:
Quantity:
Inquire Add to Basket

  • HS 39STH

  • HS MOTOR

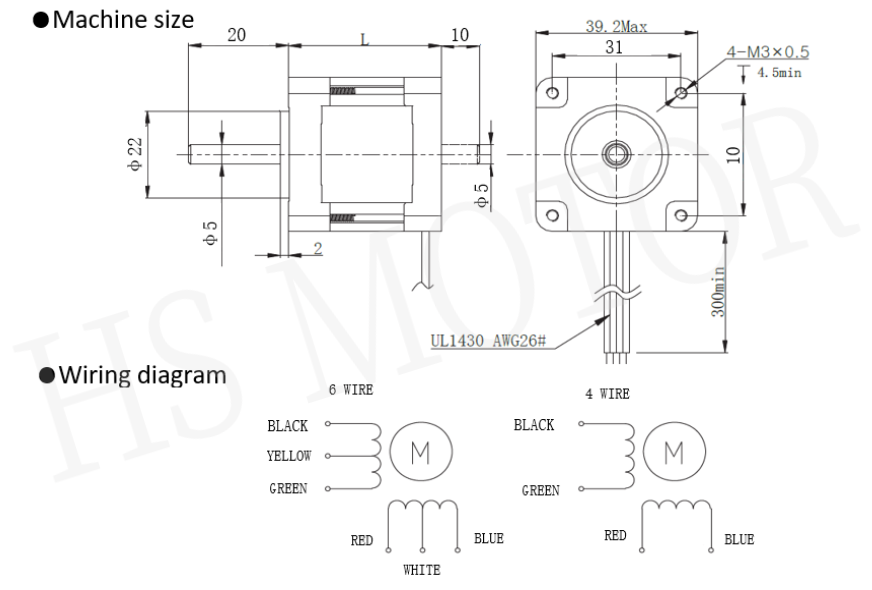

OUTLINE DRAWING

39STH外形图

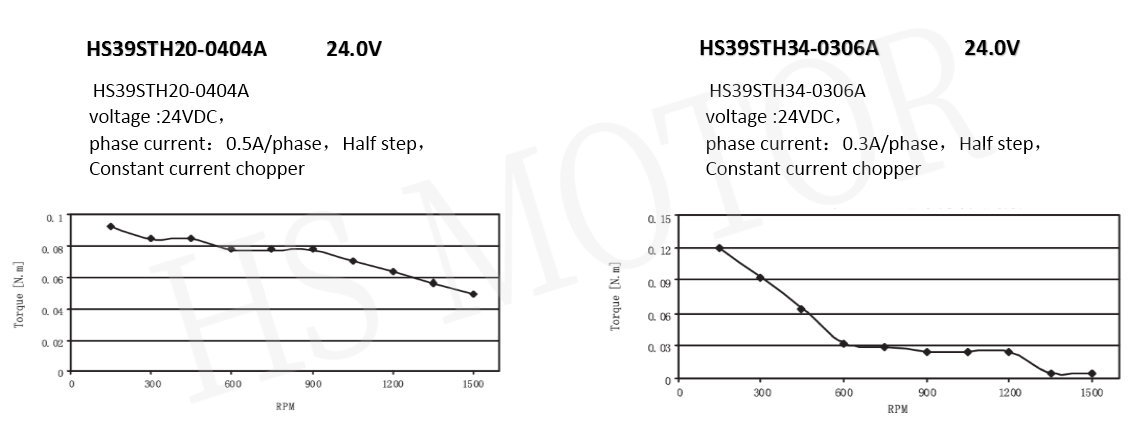

TORQUE-FREQUENCY CURVE

39STH曲线图

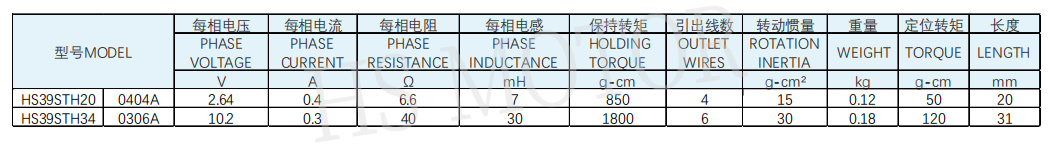

SPECIFICATION

39STH规格图
